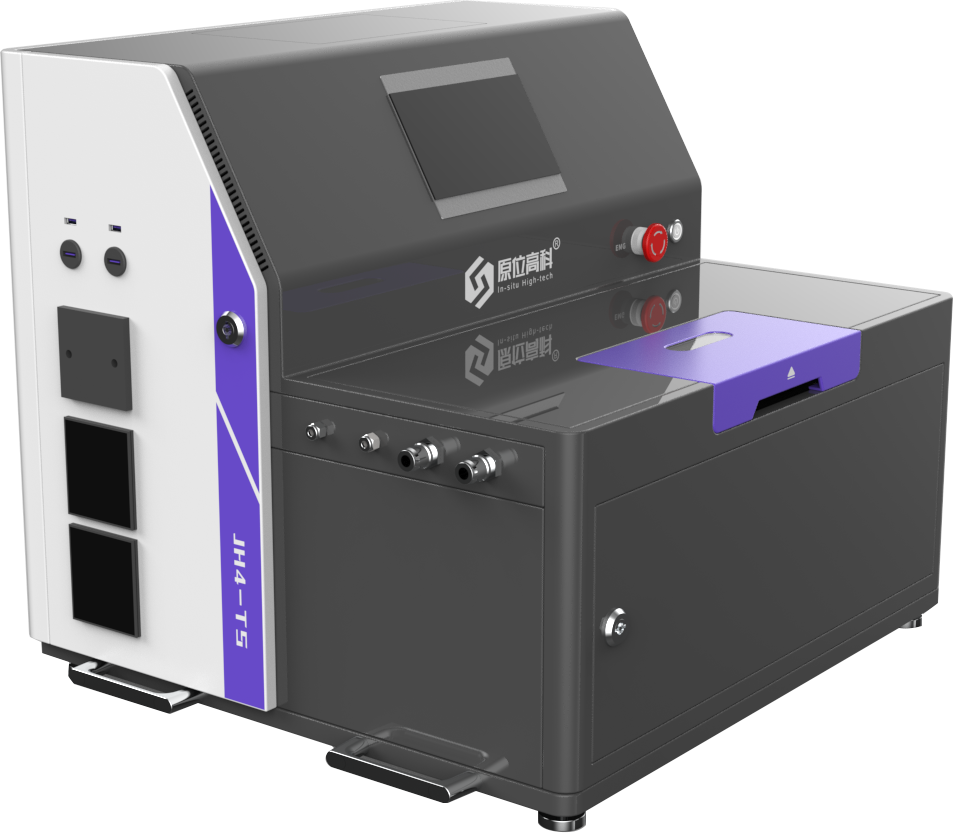

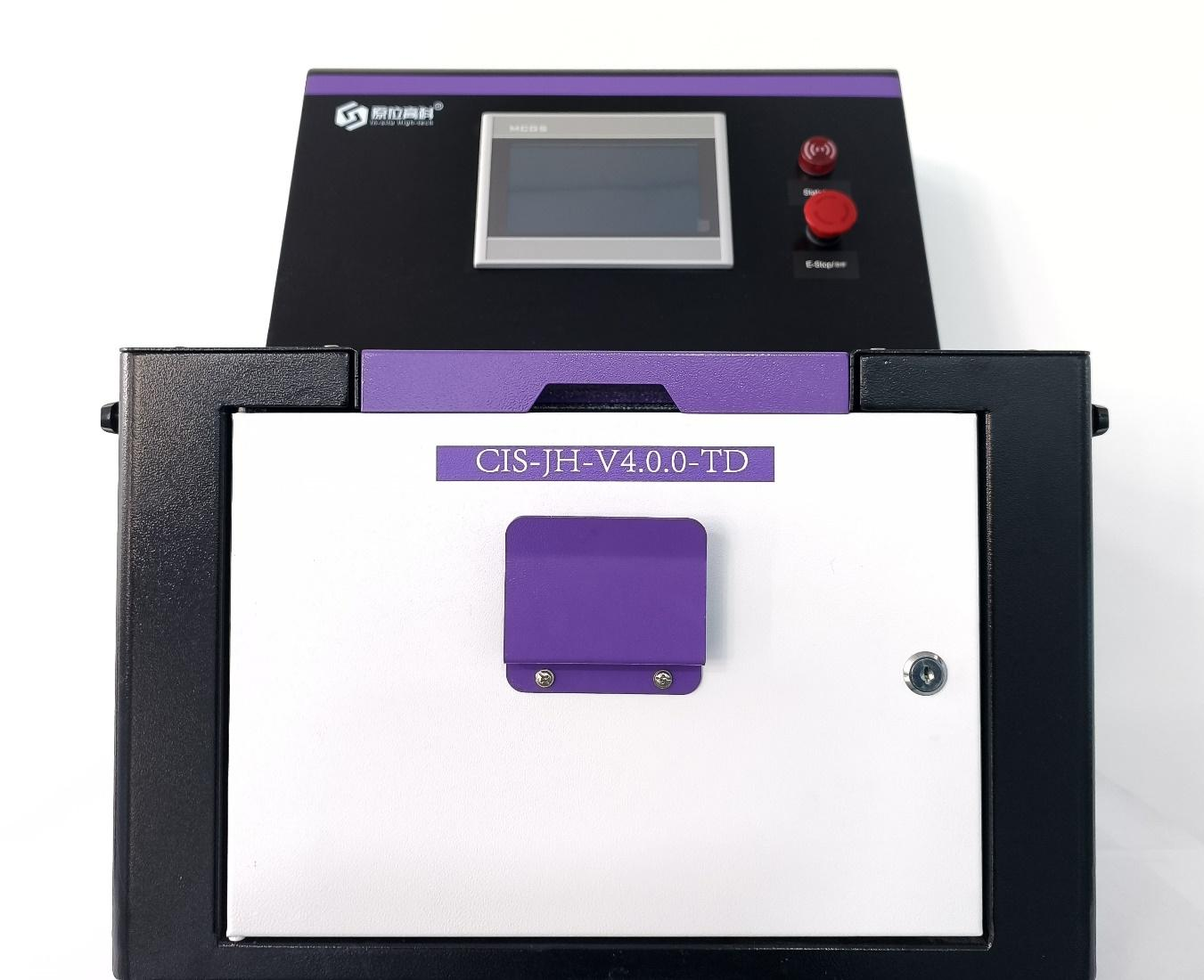

Joule heating device（lite version)

Product introduction

Joule heating device is a new type of rapid heat treatment/synthesis equipment, which can make the material reach a very high temperature (1000-3000℃) in a very short time (ms /s), and the temperature rise rate can reach 10000k/s at the fastest. Through the physical property change of the material in extreme environment and severe thermal shock, nano-scale particles can be prepared by rapid rise and cooling. The current application fields are battery materials, catalysts, carbon materials, metal materials and plastic degradation



Product parameters and characteristics


              Volume



510*624*600MM



holding time

Long-term heat preservation within ≤2000℃：

Heating environment

Vacuum, atmosphere，plasma

Cavity material

304S


Control     mode

Manual, heat preservation, program control, slope


Cavity pressure

positive pressure≤10Pa，negative pressure≤0.2Mpa

Power cooling

 cavity： cools naturally

power ：water cooling

Temperature measurement

Infrared

Power supply specification

AC220V , 16A


maximum temperature

1800℃

DC power

0-40V，0-500A



Installation example

joule heating device （lite version）

joule heating device （lite version）

Contact us

Bulk procurement, customized needs, technical consultation, etc., please leave your needs and contact information, we will get in touch with you as soon as possible

*
*
*
